Underground Shuttle Car,China Heavy-Duty Shuttle Car for Coal Mining

Heavy-Duty Shuttle Car

Home » Products » Mining Haulage Equipment » Shuttle Car » Heavy-Duty Shuttle Car

Description:

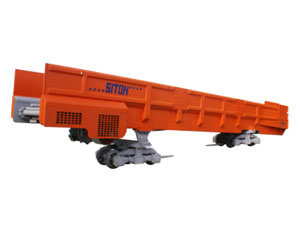

The underground shuttle car is heavy-duty shuttle car especially suitable for tunneling dimension from 3.4m×3.4 m to 5m ×6m. It is designed to support high-capacity continuous miners and roadheaders.

The underground shuttle car of heavy-duty designed is mainly used to receive, transport, and discharge the cut material easily, quickly, and efficiently for mining coal project. With powerful 4-wheel variable-frequency drive, infinitely variable transmission, 4-wheel steering, very short turning radius, 18-metric-ton capacity and quick discharge time, this coal mining shuttle car is fast, highly maneuverable and extremely productive partners.

More about Siton: To provide full range of tuneling solution, we mainly provide customers underground machines including mucking equipment, tunnel excavating equipment and mining haulage equipment. We establish business relationship with customers from Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you need heavy-duty shuttle car for your mining projects, please don't hesitate to contact us.

Technical Data
Quotation

Technical Parameters:

Model				Unit	Main Parameters
Model					ST-12(B) SD-12(B)	ST-14(B) SD-14(B)	ST-16(B) SD-16(B)	ST-20(B) SD-20(B)	ST-25(B) SD-25(B)	ST-30(B) SD-30(B)	ST-40(B) SD-40(B)
Capacity				m3	12	14	16	20	25	30	40
Loading ability				T	24	28	32	40	53	55	75
Weight				T	12/12.3	12.6/12.9	17.5/17.8	19.4/19.84	26.12/26.3	28.8/29.3	37.5
Track gauge				mm	600/762/900	600/762/900	600/762/900	600/762/900	600/762/900	762/900	762/900
Loading height				mm	1400/1320	1445/1380	1480/1420	1590/1800	1769/1544	1730/1650	1850
Unloading time				min	-2	-2	-2	-2.5	-6.5	-4	-5
Minimum turning		S Model		m	15	15	18	20	30	30	35
radius		SD Model		m	22	22	25	30	30	50	50
Max. walking speed				Km/h	20	20	20	20	20	20	20
Electric motor model					YBI2/18.5-8	YBI2/18.5-8	YBI2/18.5-8	YH (or YBK2) 200L2-6B3	YH (or YB) 225M-8/B5	YH (or YBK2) 225M-6B5	YH (or YBK2) 250M-8B5
Electric Motor power	660/380v			kw	18.5(YBI)	18.5(YBI)	18.5×2(YBI)	2×22(YBK2) 200L2/6/B3	2×22(YBK2) 225M-8/B5	2×30(YBK2) 225M-8/B5	2×30(YBK2) 250M-8/B5
	1140/660v				18.5(YBK2)	18.5(YBK2)
	1140/660v				30(YBK2)	30(YBK2)
Overall Dimension (L×W×H)			S Model	mm	10500/1710 /1700	11255/1710 /1800	12940/1670 /1840	12960/1800 /2400	14130/1740 /2750	19500/1800 /2750	22500/1800 /3100
Overall Dimension (L×W×H)			SD Model	mm	10500/1710 /2200	11255/1710 /2370	12940/1670 /2400	12900/1800 /2700	16216/1760 /3250	19500/1800 /2980	22500/1800 /3250
Steel track				Kg/m	≥18	≥18	≥24.33	≥33.43	≥33.43	≥38.43	≥43.50
Adaptive tunnel dimension(W×H)				M2	≥3.4×3.4	≥3.4×3.4	≥4×4	≥4×4.5	≥4.2×4.5	≥5×5.5	≥5×6

Note: The above parameters are only for reference. They may be different form the actual parameters.
